ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

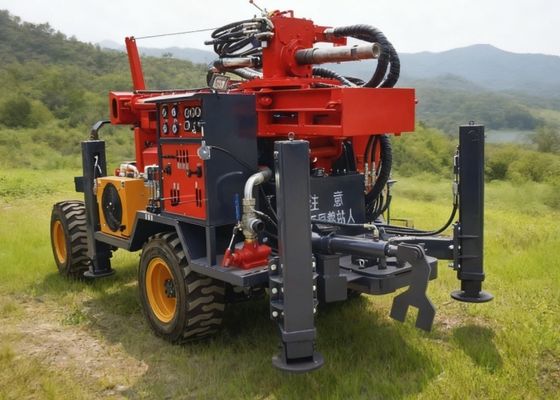

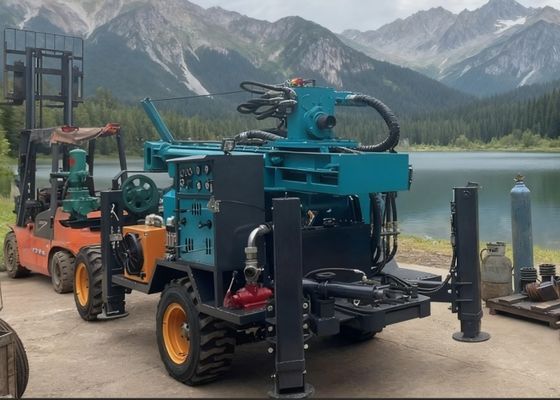

Gambar besar : ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

Detail produk:

Tempat asal:	CINA
Nama merek:	JINZHOU SHITAN
Sertifikasi:	ISO/CE/COC
Nomor model:	ST-300

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 Set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Paket Ekspor Standar
Waktu pengiriman:	7-10 hari
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	2000 set per tahun

Kontak

Detil Deskripsi produk

Nama Produk:	Peralatan pengeboran lubang dalam	Nomor model:	ST 200
Tipe Mesin:	Rig pengeboran borewell air	Sertifikasi:	ISO/CE/COC
Diameter lubang:	100-350 mm	Kedalaman pengeboran:	200 meter
Kondisi:	BARU	Batang pengeboran:	76/89mm
Jaminan:	12 bulan	Torsi rotasi:	7500nm, 983 nm, 4200n.m, 3400mm
Setelah layanan penjualan:	Dukungan Video	Warna:	Kuning, merah dan biru
Menyoroti:	ST 200 pneumatic water well drilling rig , large borehole diameter drilling rig , 10 inch water well rig

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

ST 200 Pneumatic Drilling Rig for Rocky Layer Blasting Borehole. Professional-grade borehole drilling equipment designed for deep underground operations in rocky layers, with capability to drill up to 200 meters.

Key Features

Designed for deep well drilling up to 200 meters
Pneumatic drive system for powerful performance
Suitable for hydrogeological exploration and water well drilling
Excellent adaptability for complex geological conditions
ISO certified with 12-month warranty

Product Specifications

Attribute	Value
Model Number	Crawler-mounted drilling rig
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized (90-300mm)
Drilling Depths	200 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m
Air Consumption	16-30 M3/min, 20-100m3/min
Color Options	Yellow, Red and Blue

Technical Details

Power: Diesel
Dimensions: 6400MM × 2250MM × 2700MM
Weight: 5800KG
Rotary Speed: 0-90rpm
Travelling Speed: 0-2.5km/h
Drilling Rods: 76×2m + 76×3m

Equipment Components

Pneumatic System: Provides power to drive the rotation and impact of the drill bit
Drill Rod System: Multiple sections of drill rods for gradual penetration
Drill Bit: Various types available based on geological conditions
Control System: Adjusts drilling parameters like rotation speed and impact force
Debris Removal System: Uses compressed air or mud to keep borehole clean

Safety Precautions
